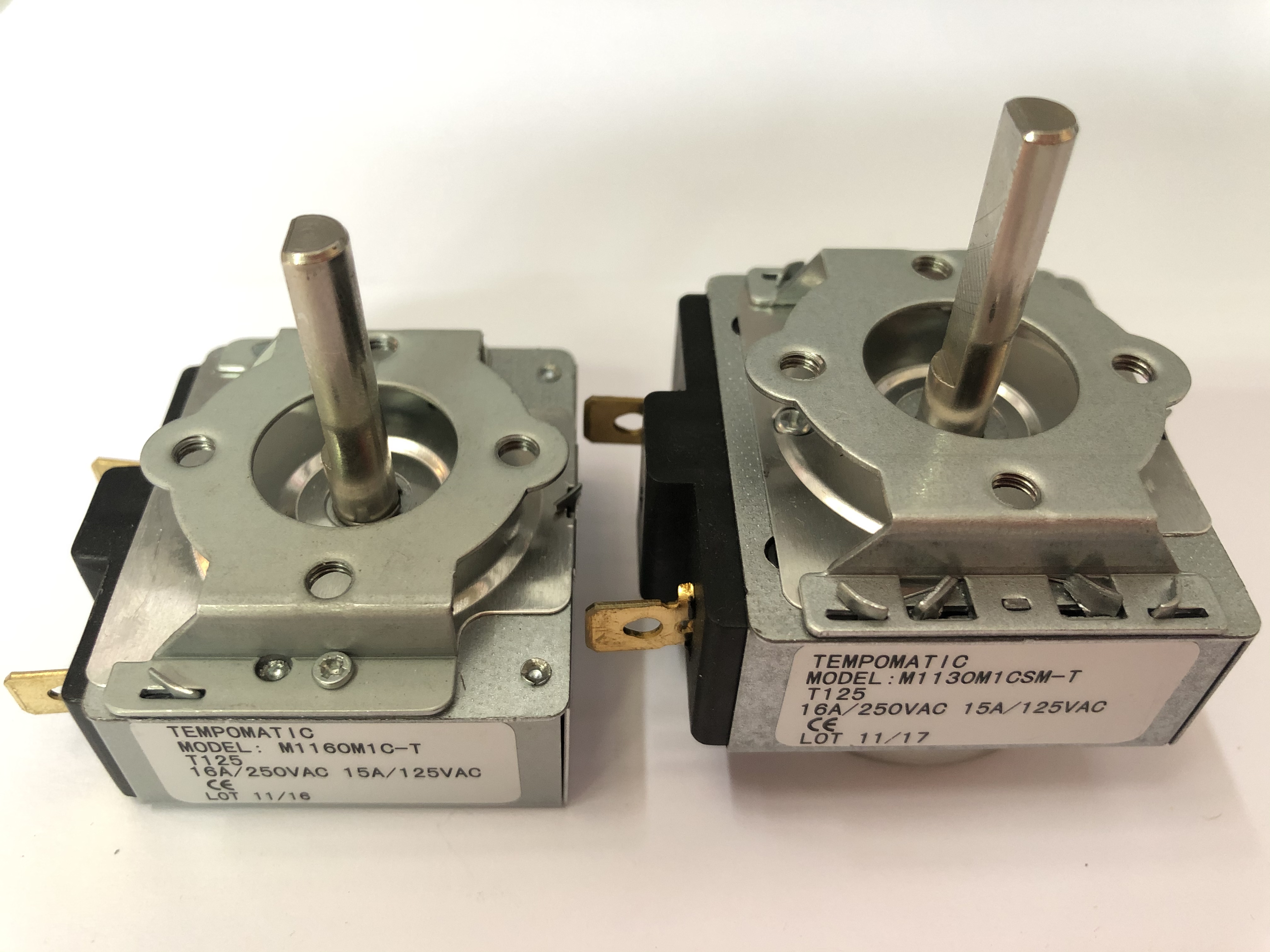

MECHANICAL TIMER

Type: "M11"

Single pole mechanical timer
  • GENERAL FEATURES:
    • Movement: mechanical
    • Running time: 1-5-7-15-30-60-120/min.
      (angle: 270°/ with manual position 315°)
    • Rating: 16 (3) A 250 V
    • Temperature: T 125°C
    • Switch: one pole
    • Contact: silver/cadmium
    • Connection: faston (AMP) 6,3

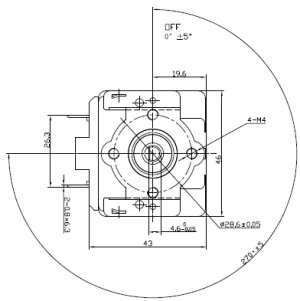

    • Mounting device: two M4 screws distance 28,6 mm
    • Available also with manual position
    • Approval: CE, TUV
    • Double insulation, Class I
    • Number of operating cycles: 10.000
  •

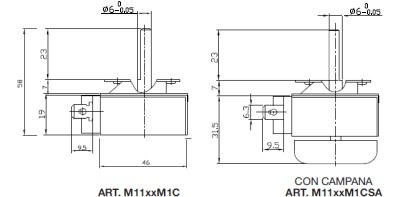

    Time switch
