MECHANICAL TIMER

Type: M11-2C

Double poles mechanical timer

GENERAL FEATURES:

Movement: mechanical
Switch: double poles
Running time: 5-15-30-60-120-180/min +/-5%, angle 295° or 270°
Upon request available with bell and/or manual position
Rating: 15A 125VAC - 16A 250VAC 50/60Hz
Working temperature: -10°C +125°C
Contact: silver/cadmium
Connection: faston (AMP) 6,3mm
Mounting device: two screws M4 distance 28,6 mm
Operating torque: 0,1-0,5Nm
Double insulation, Class I
Number of operating cycles: 10.000
Approval: CE, TUV

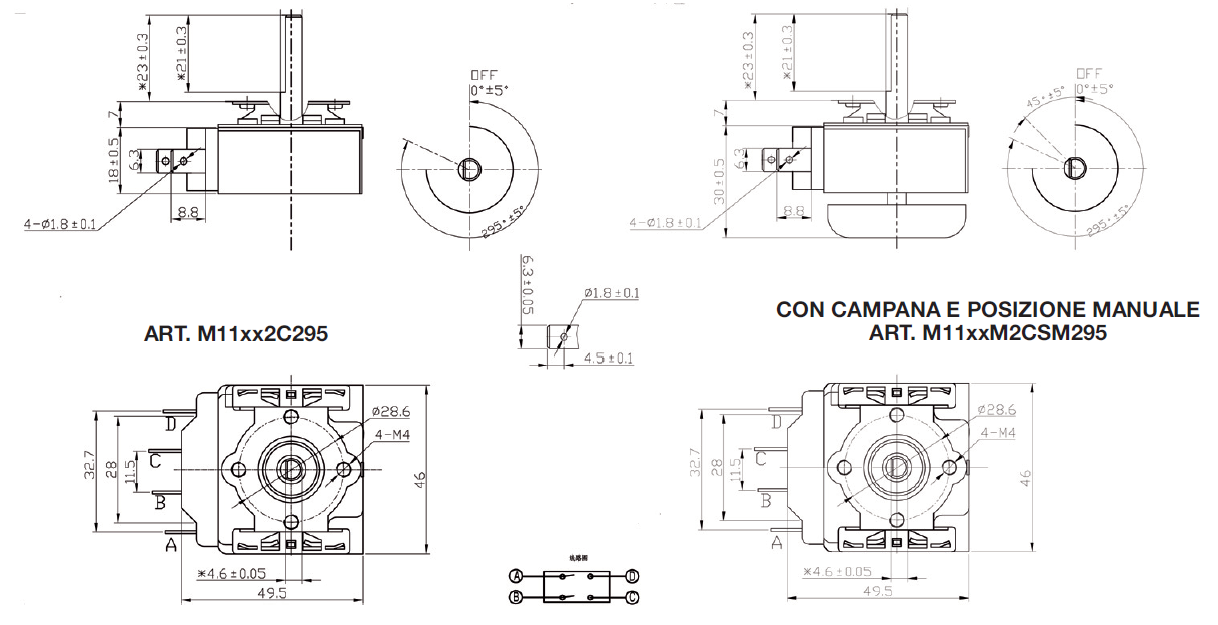

Time switch
