SECURITY THERMOSTAT

Type: ST
ST22

• TEMPERATURE SETTING RANGE
  (at no load)
  50°C to 150°C in increments of 5°C


• TOLERANCE
  Indicated temp. ±5°C


• ON-OFF DIFFERENTIAL TEMP.
  (general)
  30 ±15K


• HEAT ENDURANCE
  Open temp. +50°C/continuity, 200°/1min


• CYCLE LIFE(Resistive Load)
  10A/125V AC 10,000 cycles, 7A/250V AC 10,000cycles
  3A/48V DC 6,000 cycles, 2.2A/48V DC 10,000cycles


• CONTACT CAPACITY
  Min. Current 50mA/ repeatedly,
  Max. Current 30A/5 cycles


• CONTACT SYSTEM
  Normally closed

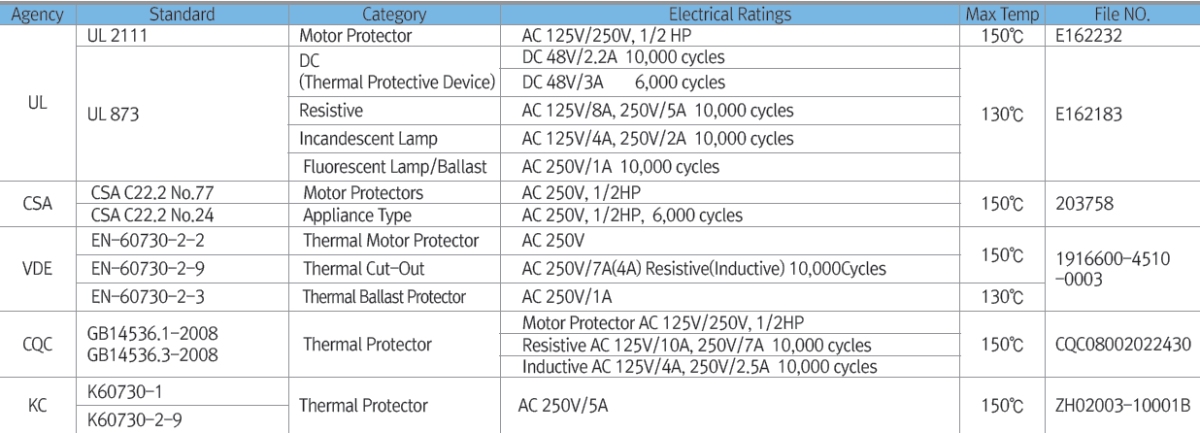

• APPROVAL/RATINGS


• LEAD WIRE SPECIFICATION
  • W-Type : UL3266 AWG22 Stranded. Standard Length: 70mm long with 7mm stripped
  • P-Type : ø0.7 Tinned Lead. Standard Length: 25mm * The length can be adjustable on demand.
• WARNING
  You may happen to encounter counterfeits of SEKI products in the market, all of which cause a serious damage by their serious defectives
  in quality. Therefore it is strongly recommended that you purchase authentic SEKI products from our AUTHORIZED distributors.

• TEMPERATURE SETTING RANGE
  (at no load)
  60°C to 150°C in increments of 5°C


• TOLERANCE
  Indicated temp. ±5°C


• ON-OFF DIFFERENTIAL TEMP.
  (general)
  30 ±15K


• HEAT ENDURANCE
  Open temp. +50°C/continuity, 200°C/1min


• CYCLE LIFE(Resistive Load)
  15A/125V AC 6,000 cycles,
  13A/250V AC 6,000 cycles


• CONTACT CAPACITY
  Min. Current 100mA/ repeatedly,
  Max. Current 30A/5 cycles


• CONTACT SYSTEM
  Normally closed

• FEATURE
  - Snap Action
  - Automatic Reset Bimetal
  - Superior Heat Response
  - Non-Phenolic Insulation

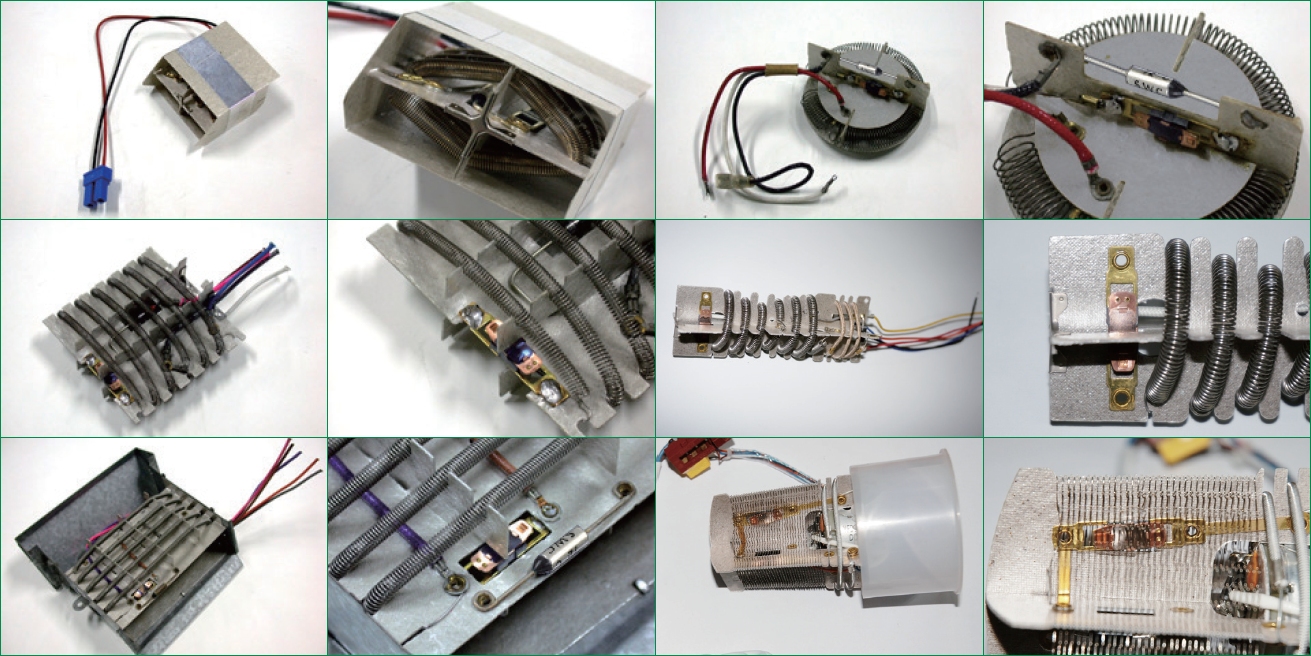

• APPLICATION
  Overheat protection for Hair Dryer, Electric Fan, Heaters, Popcorn Machines, Electric Ovens, Dish Dryers etc.

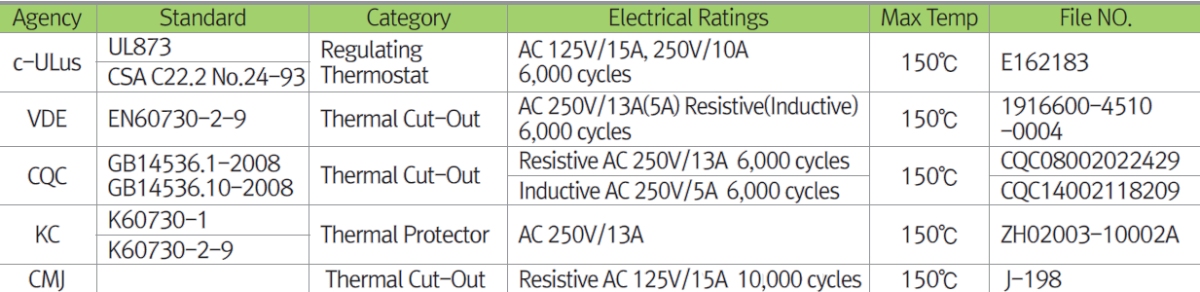

• APPROVAL/RATINGS

• WARNING
  You may happen to encounter counterfeits of SEKI products in the market, all of which cause a serious damage by their serious defectives in quality. Therefore it is strongly recommended that you purchase authentic SEKI products from our AUTHORIZED distributors.
