BUILT IN SIGNAL CLOCK

Type: STCD60MV

Built-in signal clock for oven or other appliance. It can be combined with thermometer STCD600SV.



SPECIFICATION Time setting range: 60 minutes, others timing on request Time setting direction: CW Working direction: CCW Operating temperature range: -10°C +125°C Working angle: (A)270°±5°(B)280°±5° Endurable Life: 5.0000 charges number Charge torque: 4.5~5.5kg.cm Discharge torque: 4.0~4.5kg.cm Time tolerance: ±3%



BUILT IN THERMOMETER

Type: STCD600SV



SPECIFICATION Dial size: 60 mm Case: chrome plated steel case, silver color front flange, fixed by rivet Windows: Glass window Tube: Copper alloy Movement: Brass Capillary: AISI 304 stainless steel, length upon request Bulb: AISI 304 stainless steel, standard size dia 8 x 100mm Dial: In aluminium, white background, black marking Pointer: In aluminium, black finish

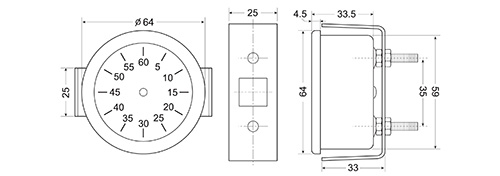

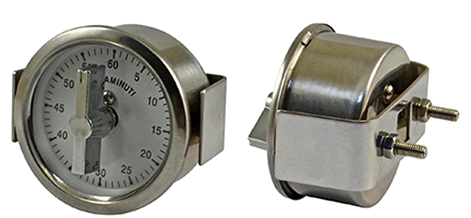

Type: STCD60M-FL2

Built-in signal clock for oven or other appliance.



SPECIFICATION Time setting range: 60 minutes, others timing on request Time setting direction: CW Working direction: CCW Operating temperature range: -10°C +125°C Working angle: (A)270°±5°(B)280°±5° Endurable Life: 5.0000 charges number Charge torque: 4.5~5.5kg.cm Discharge torque: 4.0~4.5kg.cm Time tolerance: ±3%
