GEARED MOTOR

Permanent-magnetic
Type CTY 49III

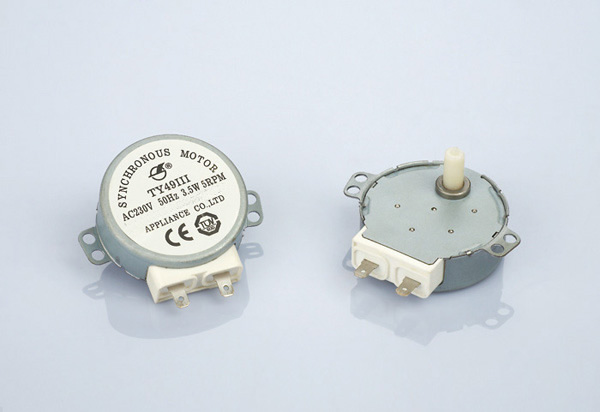

Motore riduttore sincrono CTY49III

GENERAL FEATURES:
  • Power frequency: 50Hz/60Hz
  • Operating voltage: 110V~120V 220V~240V
  • Operating temperature: -10℃~+55℃ -10℃~+125℃
  • Input power:≤4W
  • Output speed: 2.5~10RPM
  • Output torque: 350mN.m(At 5RPM20℃)
  • Insulation resistance: ≥100MΩ
  • Insulation strength: 1500V/1min.
  • Insulation class: E/H
  • Temperature rise: ≤ 60K
  • Rotation: CW/CCW
