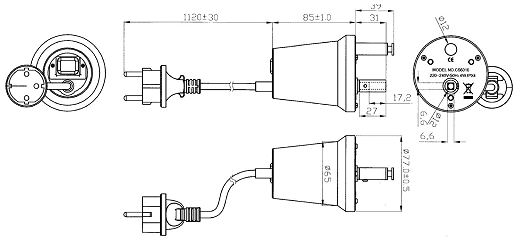

GRILL MOTOR

Type: HY6010

SPECIFICATION

Low noise electric grill motor complete with cable and water-proof switch.
Output terminal 6x6mm for square spit.

cable grill motor

TECHNICAL PARAMETER

Rated voltage 220V~240V
Rated current 20mA
Rated frequency 50Hz
Power dissipation 4W
Torque 10KGf-CM
Temp rise 60DEG BELOW
Insulation resistance 100M/500VDC ABOVE
Withstand voltage 1500VAC/1MIN
RPM 2-2.4RPM
Rotating direction CW/CCW
Insulation class A CLASS
Temp range -10°C~+60°C
