MICROSWITCHES

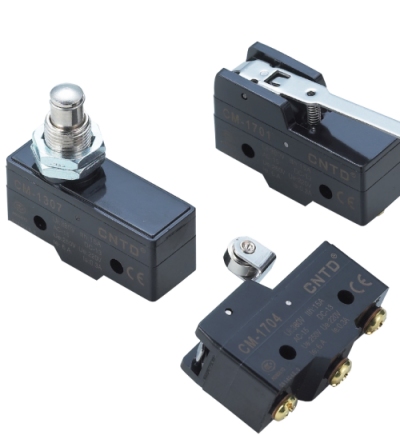

MICROSWITCH CM SERIES



limit switch - push button limitswitch


Features

  • Virous of actuators, action position is adjustable (such as CM1701)
  • High switch on and off capacity (15A)
  • High accuracy
  • Wide range of operation speed
  • Each type of CM series has solder terminal, screw terminal and tab terminal are selective
  • Add A for solder terminal, add C for tab terminal, blank for screw terminal

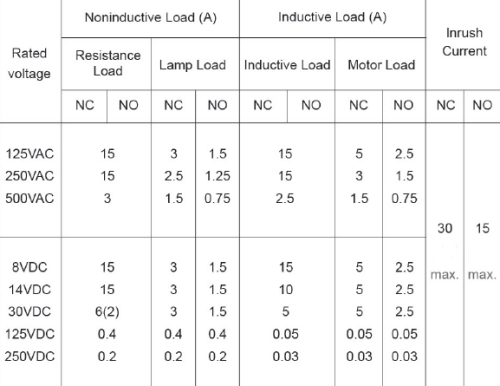

Ratings

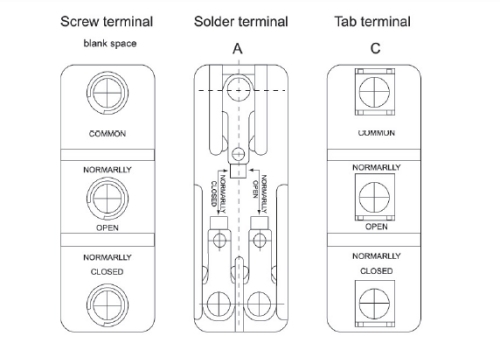

Terminal Type

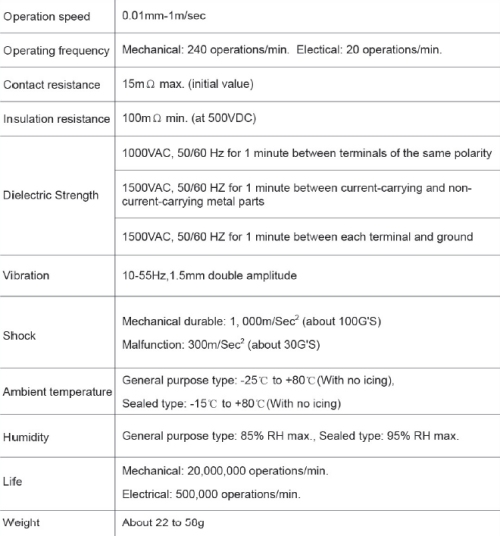

Characteristics

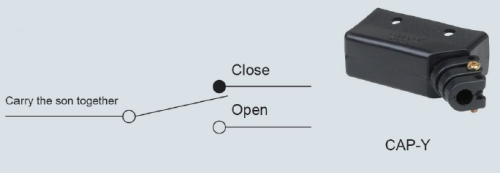

Contact Form
click on image to enlarge

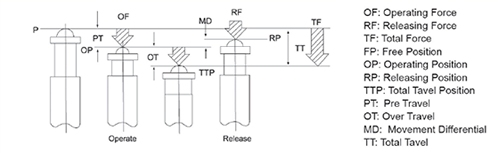

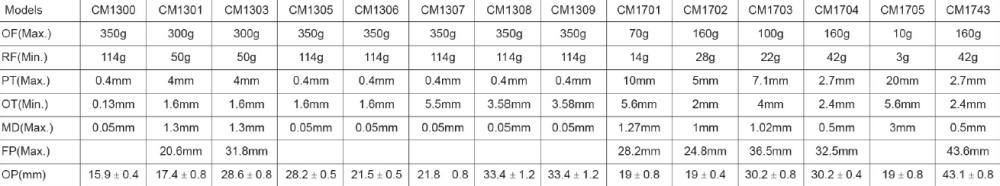

Operating Characteristics
Operating Characteristics
click on images to enlarge

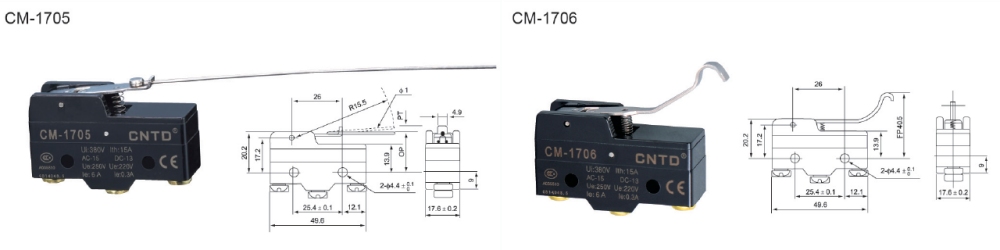

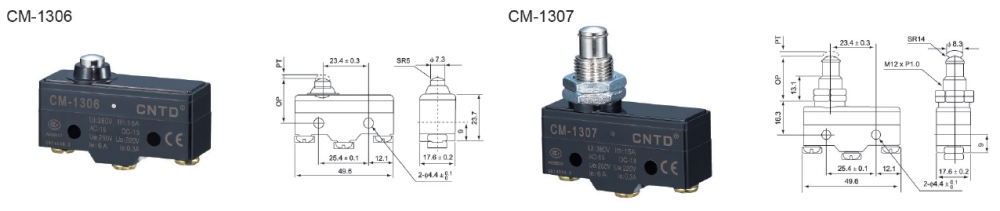

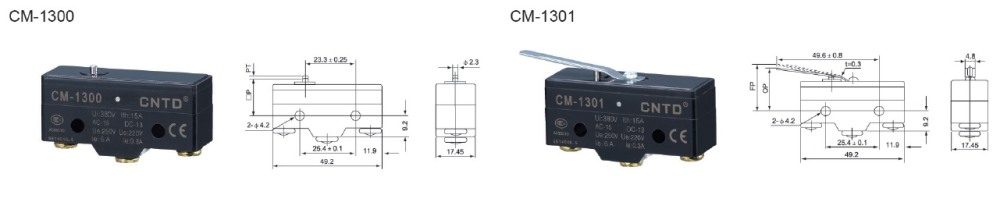

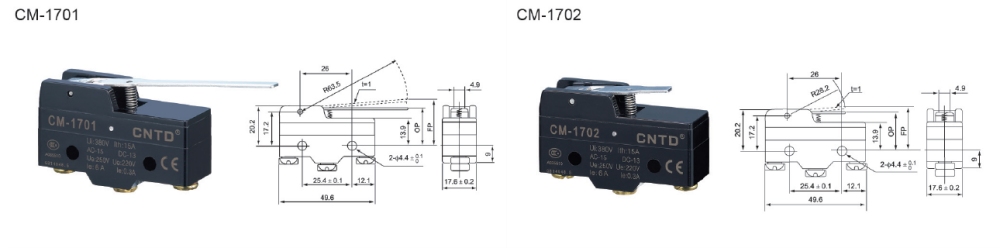

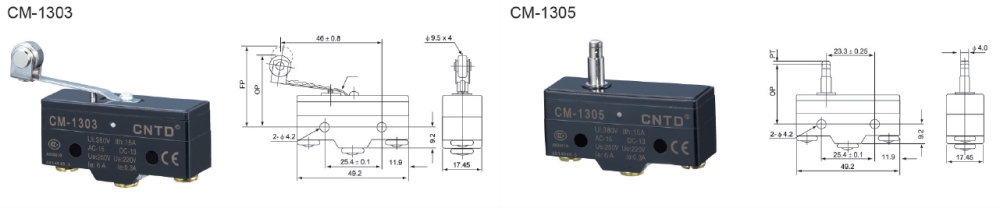

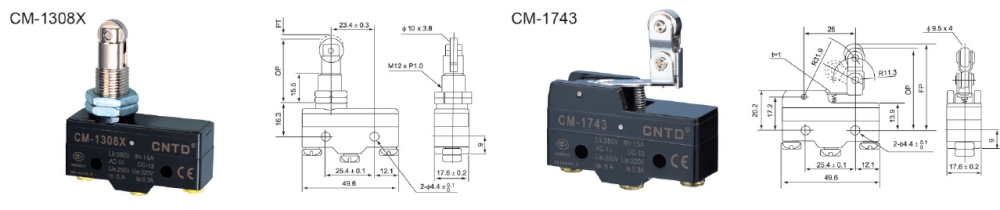

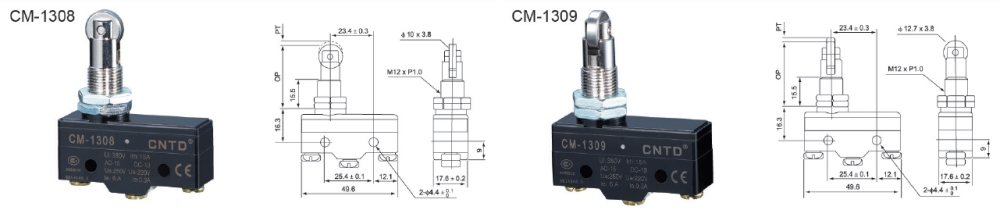

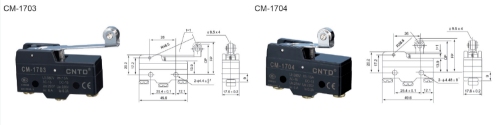

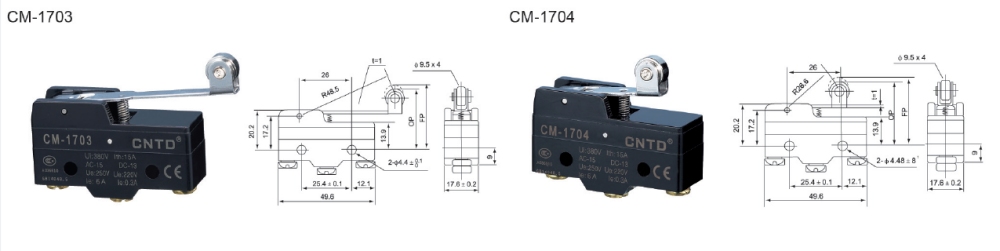

Appearance and Dimension
CM Micro Switch
