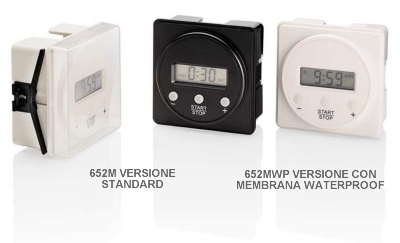

| APPLICATION |
All electric appliances and equipment which require limited
operation
periods accurate to the minute or even the second, independent
of the
time-of-day.
|
| |
| FUNCTIONS |
- Maximum programmable runtime 9.59 hours or minutes,
other fixed
runtimes can be programmed
- Repeat function
- Stop mode configurable as restart mode or continue
mode
- Half-time alarm
- Expiry alarm
- Configurable as basic version with fixed runtimes only
|
| |
| FEATURES |
- Three-digit LED display
- Operation via 3 buttons, optional membrane keys for
easy cleaning
- Easy-to-customize functions via DIP switches
- 1 relay
- Door contact input
- External buzzer input
- Black or white housing
- Easy mounting via fixing brackets
- Optional transparent cover available
|

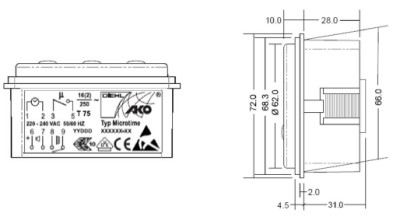

| |
| TECHNICAL DATA |
- Nominal voltage 12 V AC/DC, 24 V AC/DC, 110-120 V AC,
220-240 V AC
- Nominal frequency 50/60 Hz
- Suitable for protection class I and II equipment
- Live parts must not be accessible when the timer is
installed!
- Max. admissible ambient temperature -10°C…+75°C
- Contact rating 1 x 16 (2) A/250 V AC, optional with
changeover relay
- Stand by power consumption < 0.5 W
- 6 DIP switches offer a range of flexible configurations:
Time format setting: 9:59 in either hours/minutes or minutes/seconds
Runtime setting: either up to 9:59 or limited to 15, 30
or 60
Half-time alarm on or off
Stop mode configuration: either restarting the runtime
or continuing
after an interruption
Basic version: with only 3 fixed runtimes of 15, 30 and
60
- Connections to mains supply and relays via tab terminals
6.3 x 0.8 mm
in compliance with EN 61210
- Connections for door contact and external buzzer via
tab terminals 2.8
x 0.8 mm in compliance with EN 61210
- Signal input for external buzzer > 5 V, 15 mA
- Approvals: VDE-ENEC and UL-CSA (technical conditions
apply)
|
| |
| ACCESSORIES |
- 2 each fixing brackets material no. 413271110 for assembly
behind
panels
- Transparent cover material no. 413271185 optionally
available.
|
| |
